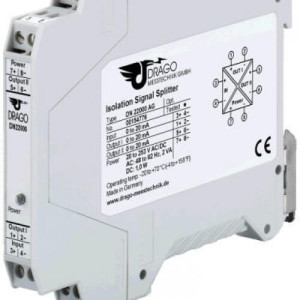

Technical Data
Input
Input signal 0…20 mA 4…20 mA 0…5 V 0…10 V
See order information
Input resistance Current input
Voltage input 30 Ohm
500 kOhm
Overload Current input
Voltage input ≤ 200 mA
≤ 30 V
Output I, Output II
Output signal 0…20 mA 4…20 mA 0…5 V 0…10 V
See order information
Load Current output
Voltage output ≤ 10 V (500 Ohm at 20 mA)
≤ 10 mA (1 kOhm at 10 V)
Offset 20 µA , 10 mV
Ripple < 10 mVrms
General Data
Transmission error < 0.1 % of final value
Temperature coefficient 1) < 0.015 % of final value /K
Response time < 5 ms
Test voltage 2.5 kV, 50 Hz
Input against Output I against Output II against power supply
Working voltage 2)
(Basic Insulation) Up to 600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1 between all circuits.
Protection against electrical shock Protective separation to EN 61140 by reinforced insulation in accordance with EN 61010-1 up to 300 V AC/DC for overvoltage category II and pollution degree 2 between all circuits.
Ambient temperature Operation
Transport and storage 0 to + 55 °C (+32 to +131 °F)
-25 to +80 °C (-13 to +176 °F)
Power supply see order information 80 … 240 V AC, + 10 %, 48 … 62 Hz, approx. 3 VA
24 V DC, working range: 20 … 30 DC, approx. 1.5 W
EMC 3) EN 61326 -1
Construction 12.5 mm housing, protection type: IP 20
Weight Approx. 100 g
Average TC in specified operating temperature range
As far as practicable the standards and rules mentioned above are considered by development and production of our devices. In addition the assembly rules for our devices are to be considered by installation in other equipments. For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent situated devices.
Minor deviations possible during interference
