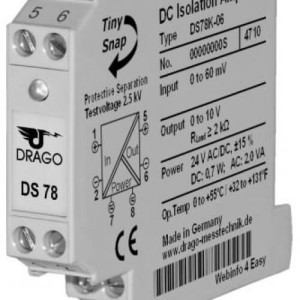

Technical Data
Input
Input signal 1) 0…60 mV, 0…100 mV, 0…150 mV, 0…300 mV
±60 mV, ±100 mV, ±150 mV, ±300 mV
see Product line
Input resistance > 100 kOhm
Overload ≤ 30 V
Output
Output signal 1) 0…10 V, 0…5 V, 0…20 mA
2…10 V, 1…5 V, 4…20 mA
see Product line
Load Voltage output
Current output ≥ 2 kOhm
≤ 500 Ohm
Ripple < 10 mV rms
General Data
Transmission error < 0,2 % of measuring span
Temperature coefficient 2) < 0,02 %/K
Response time < 5 ms
Test voltage 2,5 kV, 50 Hz
input against output against power supply
Working voltage 3)
(Basic Insulation) Up to 600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010-1 between all circuits.
Protection against electrical shock 3) Protective separation according to EN 61140 by reinforced insulation in accordance with EN 61010-1 up to 300V AC/DC for overvoltage category II and pollution degree 2 between all circuits.
Ambient temperature Operation
Transport and storage 0 °C to +55 °C
–25 °C to +80 °C
Power supply 24 V AC/DC, ± 15 % AC: 48 … 62 Hz, approx. 2 VA
DC: approx. 0,7 W
EMC 4) EN 61326 -1
Construction 11.2 mm housing, protection class: IP 20
Weight Approx. 50 g
Other signals on request.
Average TC in specified operating temperature range.
As far as relevant the standards and rules mentioned above are considered by development and production of our devices. In addition relevant assembly rules are to be considered by installation of our devices in other equipments. For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent situated devices.
Minor deviations possible during interference.
