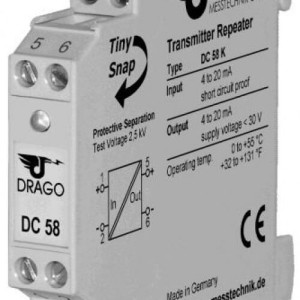

Technical Data
Input
Input signal 4 … 20 mA
Operating current range 3 … 23 mA
Voltage drop < 4,7 V
Short circuit input current < 50 mA
Output
Output signal 4 … 20 mA
Supply voltage 15 … 30 V DC
Response time Approx. 50 ms
Ripple < 10 mVrms
General Data
Transmission error < 0.2 %
Load error < 0.01 % of final value / V
Temperature coefficient 1) < 0.015 % / K of final value
Test voltage 2.5 kV, 50 Hz
Working voltage 2)
(Basic Insulation) Up to 600 V AC/DC for overvoltage category II and pollution degree 2 acc. to EN 61010–1.
Protection against electrical shock 2) Protective separation according to EN 61140 by reinforced insulation in accordance with EN 61010–1 up to 300 V AC/DC for overvoltage category II and pollution degree 2.
Ambient temperature Operation
Transport and storage 0 °C to +55 °C
–25 °C to +80 °C
EMC 3) EN 61326 -1
Construction 11.2 mm housing, protection classt: IP 20
Weight Approx. 50 g
1. Average TC in specified operating temperature range
2. As far as relevant the standards and rules mentioned above are considered by development and production of our devices. In addition relevant assembly rules are to be considered by installation of our devices in other equipments. For applications with high working voltages, take measures to prevent accidental contact and make sure that there is sufficient distance or insulation between adjacent situated devices.
3. Minor deviations possible during interference
